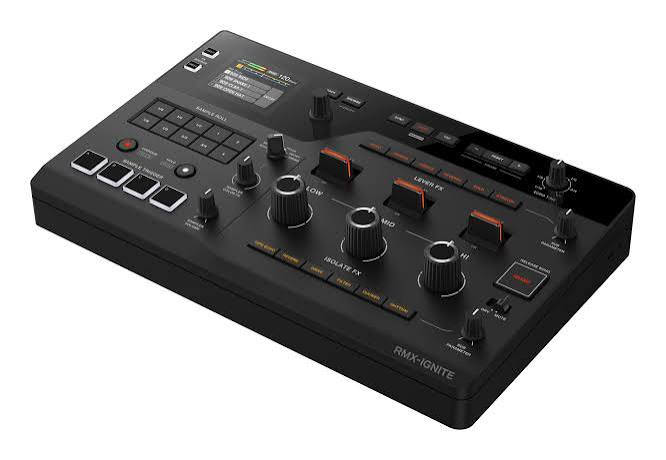

RMX-IGNITE Professional DJ Effector
Category PIONEER DJ
Get The Crowd Moving
Energize Your Sound With Expressive, Hands-on Control
- Maximize Every Nuance Of The Music Through Advanced Effects
Multiple Machines, 1 Instrument
Pads, Knobs, And Faders Blend Into 1 Layout
With Your CDJs, Mixer, And Other Gear Aligned,
your Setup Becomes A Single Instrument At Your FingertipsDigital Send/return
Quick Setup Means You Can Start Playing Right Away
- Simply Connect A USB Cable To Your Mixer’s MULTI I/O Terminal
- (DJM-A9 & DJM-V10 Compatible)
Availability: In Stock
Categories:
PIONEER DJ
Tags:
Power requirementsAC 100 V – 240 V, 50 Hz / 60 Hz
Power consumptionDC 15 V, 3.0 A
Power consumption (OFF)0.3 W
Max. external dimensions (W × D × H)340.0 × 213.3 × 72.8 mm / 13.4″ × 8.4″ × 2.9″
Main unit weight2.3 kg / 5.1 lbs.
Operating temperature+5 °C – +35 °C
Operating humidity5% – 85% (no condensation)
Sampling rate96 kHz
A/D, D/A converter32 bit
Frequency response20 Hz – 40 kHz
S/N ratio (rated output, A-weighted)CONNECTION switch (MST): 115 dB
CONNECTION switch (SEND/RETURN): 114 dB
CONNECTION switch (CDJ): 108 dB
CONNECTION switch (SEND/RETURN): 114 dB
CONNECTION switch (CDJ): 108 dB
Total harmonic distortion (20 Hz – 20 kHz BW)0.0018 %
Standard input level / Standard output levelCONNECTION switch (MST): +4 dBu / +4 dBu
CONNECTION switch (SEND/RETURN): -7.8 dBu / -7.8 dBu
CONNECTION switch (CDJ): -6 dBu / -12 dBu
CONNECTION switch (SEND/RETURN): -7.8 dBu / -7.8 dBu
CONNECTION switch (CDJ): -6 dBu / -12 dBu
Input impedance47 kΩ
Output impedance680 Ω or less
Rated output level / Load impedanceCONNECTION switch (MST): 21 dBu / 10 kΩ
CONNECTION switch (SEND/RETURN): 12 dBu / 10 kΩ
CONNECTION switch (CDJ): 3 dBu / 10 kΩ
CONNECTION switch (SEND/RETURN): 12 dBu / 10 kΩ
CONNECTION switch (CDJ): 3 dBu / 10 kΩ
Input1/4″ TS jack × 1
Output1/4″ TS jack × 1
USB Type-A (for SAMPLER)1 set (Power supply : 5 V/1 A or less)
USB Type-C (for MULTI I/O, AC adapter)2 sets
LINKLAN (100BASE-TX) × 1
